Name: 2009-16 BMW M57 3.0 Turbo Gasket Mounting Kit X5 / 335d
Brand: ART Turbos
SKU: ART-TIK00026
Price: 110.99 USD
Availability: OutOfStock

2009-16 BMW M57 3.0 Turbo Gasket Mounting Kit X5 / 335d

(No reviews yet) Write a Review

$110.99

SKU:

ART-TIK00026

Condition:

New

Availability:

Ships same day: If ordered by 2pm Central Standard Time

Weight:

2.00 LBS

Width:

7.00 (in)

Height:

7.00 (in)

Depth:

7.00 (in)

Shipping:

Free Shipping

Description

2009-2016 BMW M57 3.0 Diesel Turbo Gasket Mounting Kit

Turbocharger Gasket Kit for Mounting your BMW M57 3.0 Diesel turbos back onto the engine. This kit a mounting kit, but includes the gaskets to re-connect the turbos to each other. Each gasket, seal and piece of hardware is of OE quality and will ensure a leak free install when re-mounting them onto your engine. This gasket kit can be used for your BMW 335d, 535d or X5 35dXdrive

Verified Fitment:

BMW

335d

2009 BMW 335d 3.0 Diesel M57
2010 BMW 335d 3.0 Diesel M57
2011 BMW 335d 3.0 Diesel M57

535d

2014 BMW 535d 3.0 Diesel M57
2015 BMW 535d 3.0 Diesel M57
2016 BMW 535d 3.0 Diesel M57

535d xDrive

2014 BMW 535d xDrive 3.0 Diesel M57
2015 BMW 535d xDrive 3.0 Diesel M57
2016 BMW 535d xDrive 3.0 Diesel M57

2009 BMW X5 xDrive35d 3.0 Diesel M57
2010 BMW X5 xDrive35d 3.0 Diesel M57
2011 BMW X5 xDrive35d 3.0 Diesel M57
2012 BMW X5 xDrive35d 3.0 Diesel M57
2013 BMW X5 xDrive35d 3.0 Diesel M57
2014 BMW X5 xDrive35d 3.0 Diesel M57
2015 BMW X5 xDrive35d 3.0 Diesel M57
2016 BMW X5 xDrive35d 3.0 Diesel M57

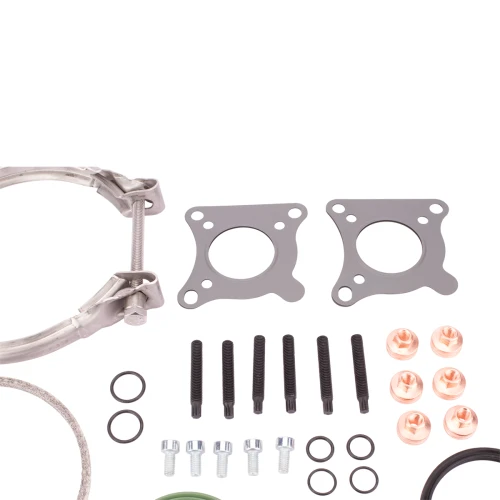

Included in the box:

(10) Copper sealing washers OE# 07119905041 | 07-11-9-905-041
(1) By-Pass Valve Red O-ring Large OE# 07119908067 | 07-11-9-908-067
(2) Copper sealing washers 07119963151 | 07-11-9-963-151
(10) Torx Head Screws OE# 07129905536 | 07-12-9-905-536
(1) Oil Return Hose Gasket OE# 11427792254 | 11-42-7-792-254
(2) M10x25 Torx Bolts OE# 11652243402 | 11-65-2-243-402
(3) Hex Screws M8x22 OE# 11657794545 | 11-65-7-794-545
(2) M10x80 Torx Bolts OE# 11657802589 | 11-65-7-802-589
(1) High Pressure Turbo (Small) to Manifold Gasket OE# 11657802593 | 11-65-7-802-593
(1) ByPass Wastegate sealing ring OE# 11657802595 | 11-65-7-802-595
(1) Low Pressure Turbo Mounting Gasket OE# 11657807542 | 11-65-7-807-542
(1) Turbo Exhaust V-Band Clamp OE# 18207793677 | 18-20-7-793-677
(1) Turbo To DPF / Downpipe Gasket OE# 18307793678 | 18-30-7-793-678
(4) Turbo Charge Connector Pipe O-rings OE 11657795047 | 11-65-7-795-047

Fit's These Turbos:

1570811, 1570849, 1570950, 3522015, 3522017, 4070399, 4070402, 7802587, 7802588, 7809863, 7811404, 7811405, 1700702151, 1700702152, 1700702159, 1700702457, 8299297837, 11657802587, 11657802588, 11657809863, 11657811404, 11657811405, 53269700001, 53269700003, 53269700004, 53269710001, 53269710003, 53269710004, 53269880001, 53269880003, 53269880004, 54399700088, 54399700089, 54399710088, 54399710089, 54399880088, 54399880089, 11-65-7-802-587, 11-65-7-802-588, 11-65-7-809-863, 11-65-7-811-404, 11-65-7-811-405, 170-070-2151, 170-070-2152, 170-070-2159, 170-070-2457, 5326-970-0001, 5326-970-0003, 5326-970-0004, 5326-971-0001, 5326-971-0003, 5326-971-0004, 5326-988-0001, 5326-988-0003, 5326-988-0004, 5439-970-0088, 5439-970-0089, 5439-971-0088, 5439-971-0089, 5439-988-0088, 5439-988-0089, 829-929-7837, B14104, B14105, B14106, B14107, BWT31745, BWT31746, BWT32461, BWT32462, K260003, K26-0003, KP390088, KP39-0088, T915795GR, T915795KL

Warranty Information

1 year or 100,000 miles or which ever occurs first
