ART Turbos

T4 Divided MLS Performance Gasket Replaces | CAT 1P0451 / FT4Z6N640B

(No reviews yet) Write a Review
$12.99
SKU:
ART-TIC00039
Condition:
New
Availability:
Ship Same Day if ordered by 2pm Central Standard Time
Weight:
1.00 LBS
Width:
5.00 (in)
Height:
1.00 (in)
Depth:
5.00 (in)
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Description

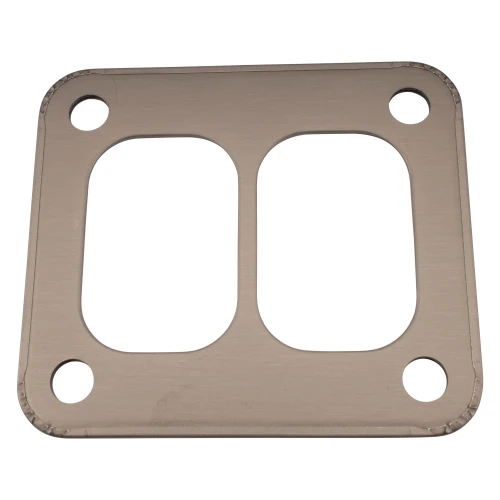

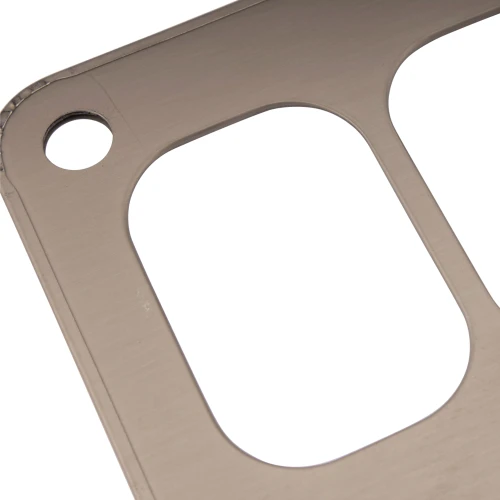

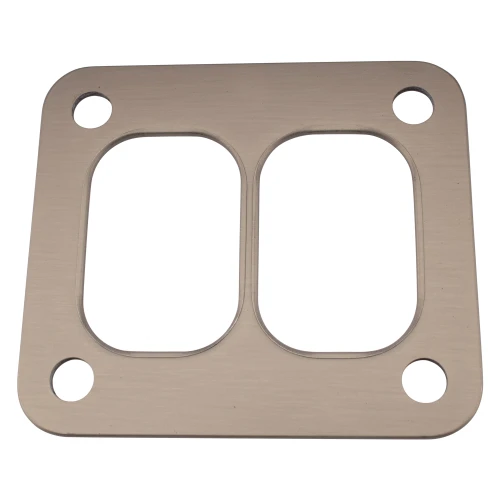

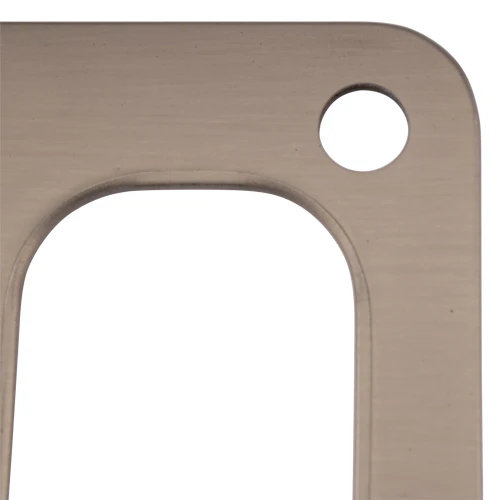

Performance Multi-Layer T4 Divided / Split Volute Turbo Mounting Gasket

Seal your turbo once and the right way.   When you are making some jam and need a reliable sealing solution for your turbo setup, buy once and be done with it.   Our T4 Divided volute turbo gasket is specially design to ensure that regardless of horsepower or surface finish on your manifold / turbine flange that you get a gasket with zero leaks. This gasket is commonly used on TP38 Ford Turbos, T04 Turbos and plenty of others OE replacement turbos.

Features and Benefits:

  • Material: 304 Coated Steel Multi-layer with High Temp Compressed Fiber
  • Dimensions: 10mm Bolt Holes | 2.31mm Thickness | 38.4mm Volute Width | 55.9mm Volute Height
  • High Temp:  Built for sustained 1100F Surface Temps

Interchanges:

Ford F4TZ-6N640-B, FT4Z6N640B, F4TZ-6N640-A, F4TZ6N640A | Navistar 1822120C1| CAT 1P-0451, 1P0451 | PAI 331356 | Mcbee M-1P0451 | Mahle G32762 | Elring 804.630 | UPS 4616514 | JB Hunt 24268 | Garrett 449763-0002, 4497630002

Verified Fitment:

Ford

E-350

  • 1994 Ford E-350 Super Duty 7.3 Power Stroke
  • 1995 Ford E-350 Super Duty 7.3 Power Stroke
  • 1996 Ford E-350 Super Duty 7.3 Power Stroke
  • 1997 Ford E-350 Super Duty 7.3 Power Stroke
  • 1998 Ford E-350 Super Duty 7.3 Power Stroke

F-250

  • 1994 Ford F-250 Super Duty 7.3 Power Stroke
  • 1995 Ford F-250 Super Duty 7.3 Power Stroke
  • 1996 Ford F-250 Super Duty 7.3 Power Stroke
  • 1997 Ford F-250 Super Duty 7.3 Power Stroke

F-350

  • 1994 Ford F-350 Super Duty 7.3 Power Stroke
  • 1995 Ford F-350 Super Duty 7.3 Power Stroke
  • 1996 Ford F-350 Super Duty 7.3 Power Stroke
  • 1997 Ford F-350 Super Duty 7.3 Power Stroke

International:

  • Navistar DT-408 Engines 1993-97
  • Navistar DT466 Engines 1993-97
  • Navistar DT466E Engines 1993-2004
  • Navistar DT530E Engines 1993-2007
  • Navistar DT570 Engines 1997-2007

CAT

  • Certain CAT C9 Engines
  • Certain CAT C10 Engines
  • Certain CAT C12 Engines
  • Certain CAT 3176 Engines
  • Certain CAT C13 Engines
  • Certain CAT 3306C Engines
  • CAT D10R Truck
  • CAT 773F Truck
  • CAT 637E, 637G, 637B, 637D, 627G, 627B, 627E Wheeled Scrapers
  • CAT 977K Track Loader

Warranty Information

1 year, 100,000 mile warranty or which ever occurs first
